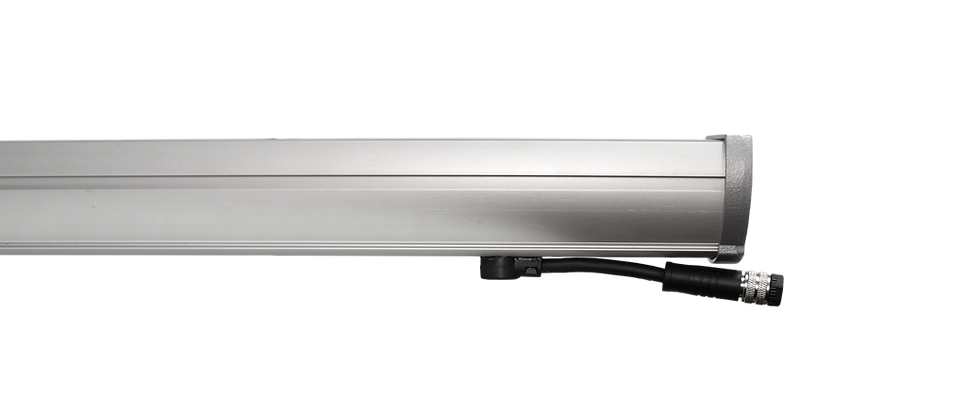

1300 Minatura
The Minatura 1300 LED fixture by Orgatech is the best solution for your wall wash lighting needs, delivering bright, even, diffused light.



Description
120-277 Volt very low profile, high-performance linear luminares, combining state of the art power conversion with powerful optical lenses and inspired architectural design.
Simple specification and snap-together power and control connectors enable time saving installation and long connected runs up to 295ft. Lens options enable grazing or long throw and increase lumen output by up to 5x over 120° unlensed fixtures for higher surface luminence, longer throw, and improved energy efficiency.
Fixtures run 10° cooler than competing products and ensure long LED life in extreme climates such as desert locations.
Resources
Quick Specs
Title | Minatura 1300 |
---|---|
Certifications | UL Listed |
CRI | 85 |
Warranty | 5 yr/50,000 hour limited warranty |
Environment | Wet or dry location - IP66. Operating Temperature: -40 ̊F to 122 ̊F |
Max Run | 128ft @ 120VAC / 295ft @ 277VAC, 54ft @ 120VAC / 125ft @ 277VAC |
LED Wattage | LS - 4.5 Watts/ft (458 Lm/Ft) - Standard / LH - 8.8 Watts/ft (640 Lm/ft) - High |
Electrical | 120-277VAC. Single connection or daisy chain with IP67 starter and jumper cables. |
Finish | Anodized brushed silver |
Mounting | Swivels, Extended Arms, Cantilevers, L Brackets or Permapost. |
Optics | 15 ̊, 30 ̊, 45 ̊, 120 ̊ |
Dimming | Non-dimming, 0-10V 10% dimming |
CCT | 2700K, 3000K, 3500K, 4000K, 5000K, 6500K |
Length (nom.) | 10", 28", 37", 46" |
Construction | Anodized aluminum extrusions with diecast endcaps. Double sealed impact proof polycarbonate lenses. |
