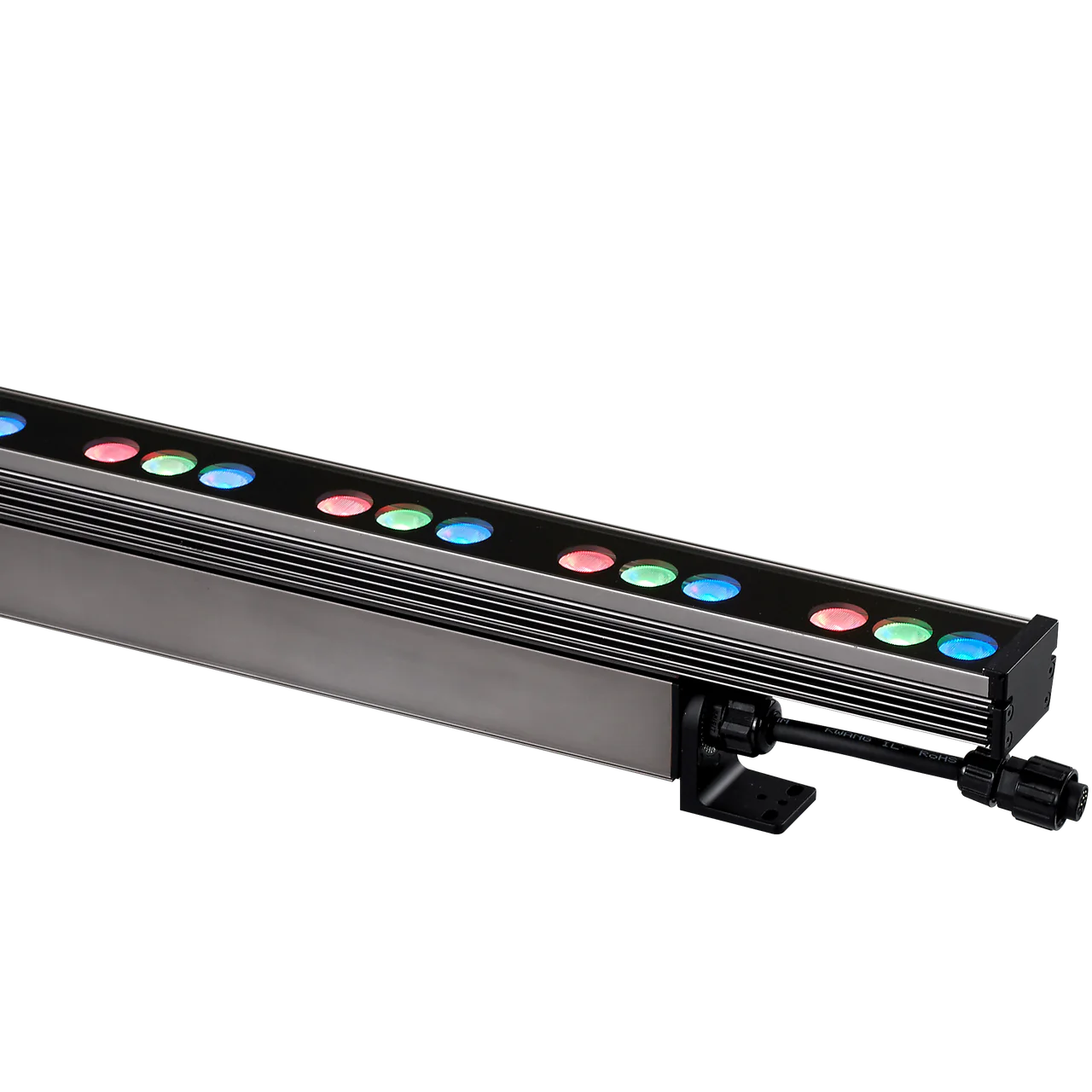

Gulfstream 1 RGB
The Gulfstream 1 is an extreme performance intense output linear fixture with 5/10/15/45 lenses for dramatic illumination of tall facades and areas where a long throw or high intensity is required.
1/1
Description
IP67 very high output luminaire with compound optical options. Radiating heat designed Anodized aluminum body, 4mm thick tempered glass lens. Stainless steel hardware.
Anti-glare microlouvers, Symmetric and Asymmetric external interchangeable louvers. Accurate aiming with fine angle control at 10° intervals with up to 180° rotation.
Resources
Quick Specs
Title | Gulfstream 1 RGB |
---|---|
Certifications | RoHS |
CRI | 80+ |
Warranty | 5 yr/ 50,000 hour limited warranty |
Environment | IP67 |
Max Run | 24V - 30ft / 120V - 145ft / 240V - 290ft |
LED Wattage | Remote 24V or 48V 14.5w/ft or Integral 120-277V 19w/ft 530lm/ft |
Electrical | 24V / 120-277V |
Finish | Anodized dark gray |
Mounting | Swivel Mount, Custom |
Optics | Optics : 10° , 20° , 40° , 10° x 60° , 20° x 40° , Asymmetric, Wide |
Dimming | DMX with RDM / DMX / DALI / PMW DIMMING |
CCT | RGB |
Length (nom.) | 1', 2', 3', 4' |
Construction | Extruded aluminum / Tempered glass lens |
